EIXO PROLONGADOR VZ17
Ref: 21.35.040 Cód: VZ17 Marca: Schneider Electric

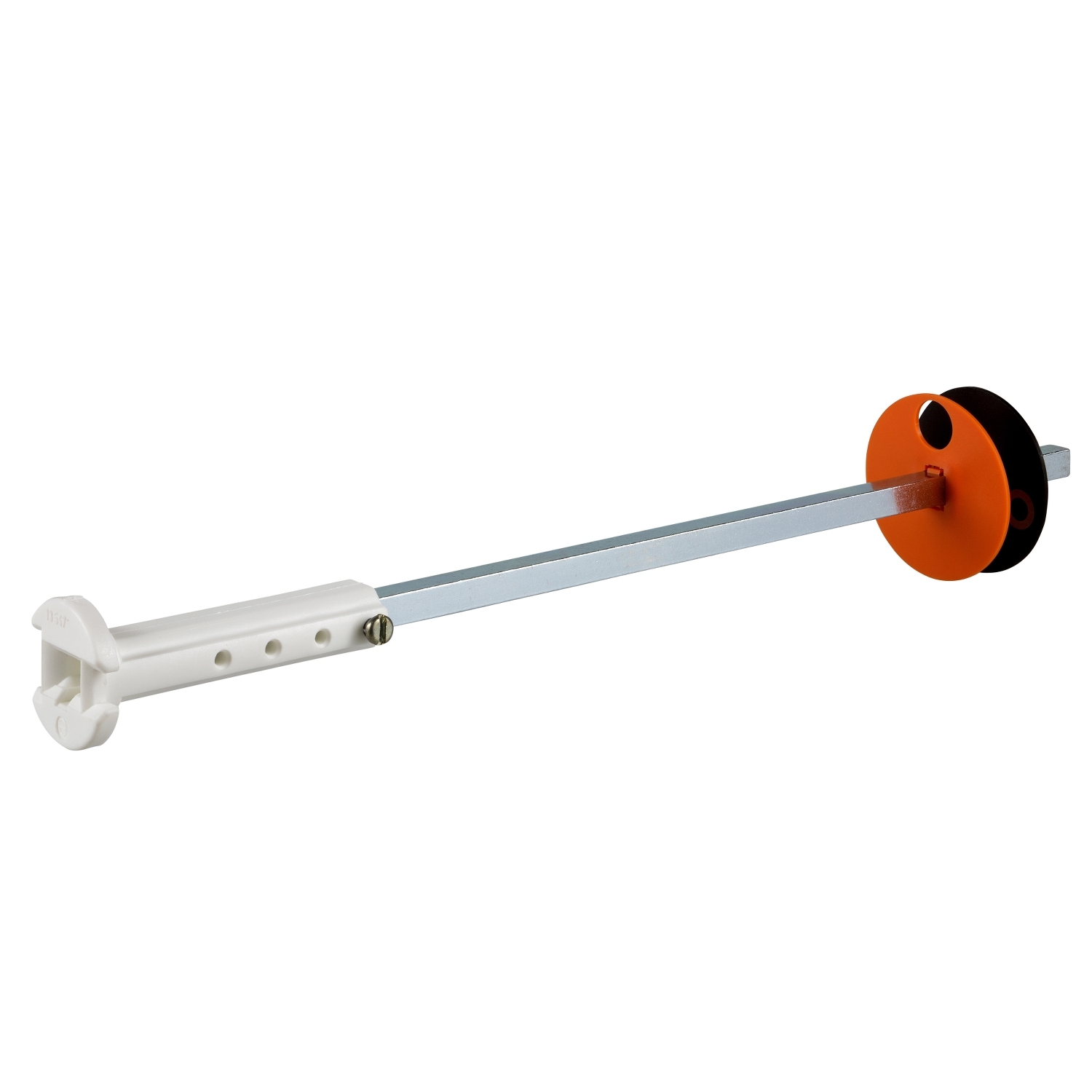

EIXO PROLONGADOR 300-330MM PARA VARIO 12-40A
Extensão de eixo TeSys Vario, para corpos de chave TeSys Vario V02 a V2. Permite a operação de um corpo de chave localizado na parte traseira do invólucro com uma maçaneta montada na porta. Possível distância entre a parte traseira do invólucro e a porta 300-330 mm. Compatível com Green Premium (RoHS/REACH).
Documentos:
Product Data SheetDeclaração de Conformidade - VZ17 Declaração REAChDeclaração de Conformidade - VZ17 Declaração RoHS da UEDeclaração de Conformidade - VZ17 Declaração RoHS da ChinaDeclaração de Conformidade - VZ17 Declaração RoHS da UEDeclaração de Conformidade - VZ17 Declaração RoHS da ChinaComplementar | |
largura | 6 mm |
comprimento | 300 mm |
Peso | 75 g |
altura | 6 mm |
distância entre a porta/traseira | 300-330 mm |
Intertravamento Mecânico | função de bloqueio de porta |
compatibilidade de gama | extensão do eixo |
Principal | |
categoria de acessórios/peças separadas | acessório de travamento |
quantidade por conjunto | conjunto de 1 |
tipo de produto ou componente | extensão do eixo |
nome abreviado do dispositivo | VZ |
gama | TeSys |
compatibilidade do produto | V02...V2 |
