CHAVE VCF0 - 25 A
Ref: 21.35.007 Cód: VCF0 Marca: Schneider Electric

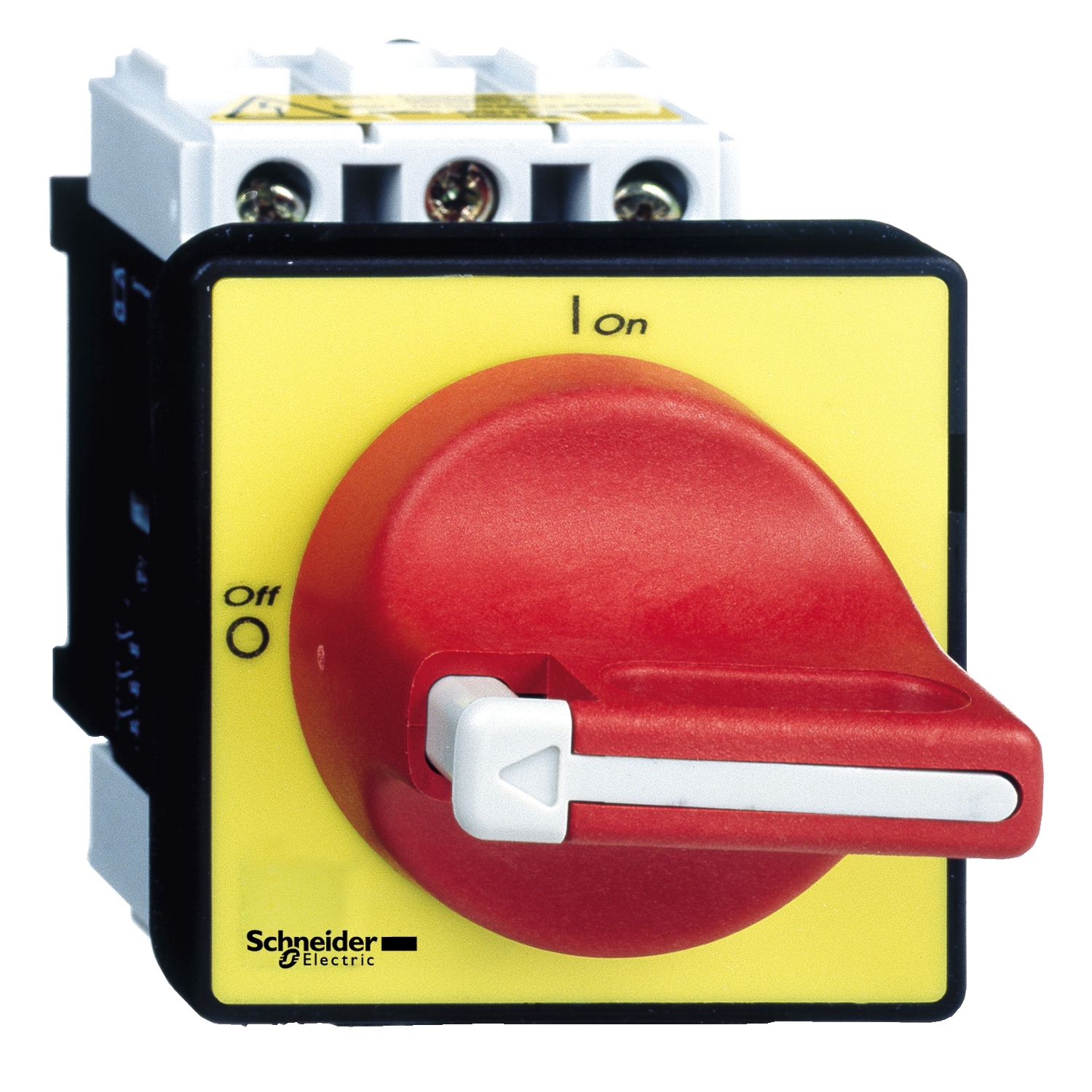

CHAVE SECCIONADORA VARIO 25A MANOPLA VERMELHA/AMARELA VCF0
Chave seccionadora TeSys Vario para montagem em porta, 3 pólos, 25A/690V, para aplicações de comutação de motores até 7,5kW@400V AC-23. Unidade completa composta por corpo de interruptor V0, manopla vermelha com placa frontal amarela 60x60mm KCF1PZ. Destinado ao uso de desconexão do interruptor de parada principal e de emergência. alça bloqueável, para 3 cadeados (a encomendar em separado). maçaneta com 4 parafusos de fixação na porta, garantindo IP65 à fixação. Certificação multipadrões (IEC, UL, CSA, CCC, EAC, Marine), compatível com Green Premium (RoHS/REACh).
Documentos:
Product Data SheetDeclaração de Conformidade - VCF0 Declaração RoHS da UEDeclaração de Conformidade - VCF0 Declaração REAChDeclaração de Conformidade - VCF0 Declaração RoHS da ChinaComplementar | |
padlocking manopla rotativa | 1 a 3 cadeados 4-8 mm |
classe de serviço intermitente | 30 |
[Ith] corrente térmica ao ar livre convencional | 25 A |
modo de fixação | por 4 parafusos of manusear |
[Ithe] corrente térmica convencional em isolamento | 20 A |
[Ue] tensão de operação nominal | 690 V CA 50/60 Hz |
altura | 74 mm |
sinalização | 0 - 1 |
dimensão da base | 60 x 60 mm |
capacidade de fechamento | 250 A a 400 V CA -21A |
capacidade de fechamento | 250 A a 400 V CA -22A |
capacidade de fechamento | 250 A a 400 V CA -23A |
[Uimp] tensão suportável de impulso nominal | 8 kV |
Peso | 0.25 kg |
[Icm] capacidade de fechamento nominal em curto-circuito | 1 kA a 400 V a Ipeak |
durabilidade elétrica | 100000 ciclos CA-21 |
durabilidade elétrica | 30000 ciclos CC-1...5 |
[Ie] corrente nominal de operação | 14.5 A CA-23 Ue: 400 V |
suporte de montagem | manusear: porta |
suporte de montagem | Interruptor: porta |
largura | 60 mm |
torque de aperto | circuito de potência: 2.1-2.1 N.m - Ligar terminais de braçadeiras roscadas |
composição do dispositivo | interruptor |
composição do dispositivo | manusear |
conexões - terminais | circuito de potência: terminais de braçadeiras roscadas cabo 10-10 mm² - rigidez do Cabo: sólido |
conexões - terminais | circuito de potência: terminais de braçadeiras roscadas cabo 6-6 mm² - rigidez do Cabo: flexível - com extremidade do cabo |
durabilidade mecânica | 100000 ciclos |
compatibilidade de gama | principal chave seccionadora |
capacidade de corte | 200 A a 400 V (CA -21A) |
capacidade de corte | 200 A a 400 V (CA -22A) |
capacidade de corte | 200 A a 400 V (CA -23A) |
potência de funcionamento nominal em W | 11 kW a 500 V (CA -23A) |
potência de funcionamento nominal em W | 11 kW a 690 V (CA-3) |
potência de funcionamento nominal em W | 15 kW a 690 V (CA -23A) |
potência de funcionamento nominal em W | 4 kW a 230...240 V (CA-3) |
potência de funcionamento nominal em W | 5.5 kW a 400..0,415 V (CA-3) |
potência de funcionamento nominal em W | 7.5 kW a 500 V (CA-3) |
potência de funcionamento nominal em W | 5.5 kW a 230...240 V (CA -23A) |
potência de funcionamento nominal em W | 7.5 kW a 400..0,415 V (CA -23A) |
corrente de curto-circuito condicional nominal | 10 kA a 400 V - fusível Associado 25 A aM |
corrente de curto-circuito condicional nominal | 10 kA a 400 V - fusível Associado 25 A gG |
[Icw] corrente nominal de curta duração admissível | 300 A a 400 V duração: 1 s |
Meio ambiente | |
força mecânica | vibrações 10 ... 150 Hz (1 gn para IEC 60068-2-6 |
força mecânica | choques 11 ms (30 gn para IEC 60068-2-27 |
resistência a incêndios | 960 °C para IEC 60695-2-1 |
tratamento de proteção | TC |
grau de proteção IP | IP20 para IEC 60529 |
grau de proteção IP | IP65 |
temperatura ambiente do ar para funcionamento | -20-50 °C |
padrões | IEC 60947-3 |
certificações do produto | CSA |
certificações do produto | CCC |
certificações do produto | GL |
certificações do produto | UL |
Principal | |
tipo de rede | CA |
tipo de rede | CC |
cor da placa frontal do punho | amarelo |
estilo de montagem para punho giratório | direto |
nome do produto | TeSys VARIO |
cor do punho | vermelho |
tipo de produto ou componente | seccionador Interruptor de paragem de emergência |
tipo de controle | punho giratório |
nível de desempenho | alto desempenho |
gama | TeSys |
adequação para isolamento | sim |
descrição de polos | 3P |
tipo e composição dos contatos | 3 NA |
nome abreviado do dispositivo | VCF |
